T&S BRASS 5EF-TMV EQUIP THERMOSTATIC MIXING VALVE

T&S BRASS 5EF-TMV EQUIP THERMOSTATIC MIXING VALVE
T&S BRASS 5EF-TMV EQUIP THERMOSTATIC MIXING VALVE
$243.46/EACH
Part #5EF-TMV
T&S Brass

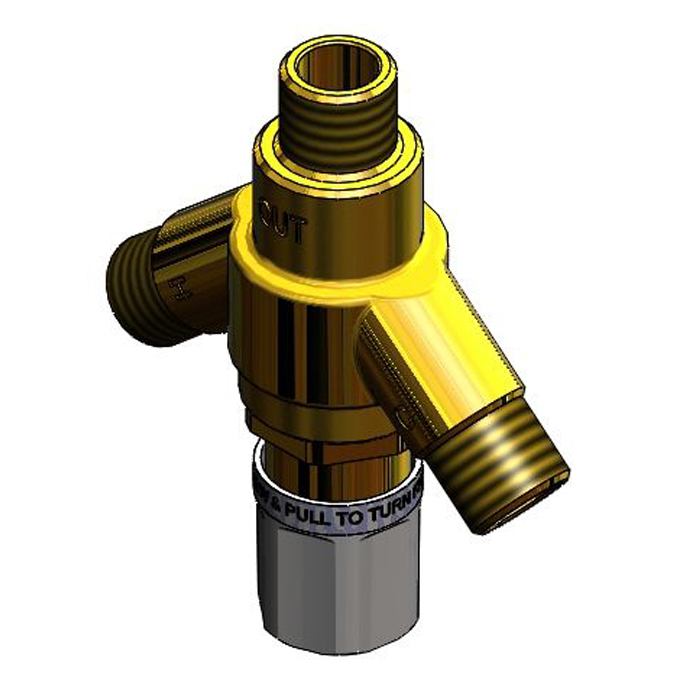

5EF-TMV Equip Thermostatic Mixing Valve w/ 1/2"" NPSM Male Fittings

Genuine Equip by T&S Brass Fixtures and Parts
Specifications:
Part #: 5EF-TMV
Part Description: Thermostatic Mixing Valve w/ 1/2 NPSM Male Fittings
UPC: 671262725590
Weight: 1.25
Unit of Measure: EA
Box Dims: 4x3x4 1/2
Harmonizing No: 8481.90.7000
Country of Origin: TAIWAN
Low Lead Content: Yes
Engineering Spec: Thermostatic mixing valve with brass body, vandal resistant locking temperature adjustment knob, integral check valves with filter screens and 1/2 NPSM male connections. NSF 61-Section 9 and NSF 372. Certified to ASSE 1070
Brand/Trade Name: Equip
Warranty: One Year (Limited)
FEATURE1: Thermostatic mixing valve with brass body
FEATURE2: Vandal resistant locking temperature adjustment knob
FEATURE3: Factory pre-set temperature approximately 100deg F.
FEATURE4: Integral check valves with filter screens in hot and cold inlets
FEATURE5: 1/2 NPSM male connections
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Hot Water Inlet Temperature: 120 F - 180 F
PERFORMANCE 3: Outlet Temperature Range: 80 F - 120 F
PERFORMANCE 4: Minimum Flow Rate: 0.35 GPM
