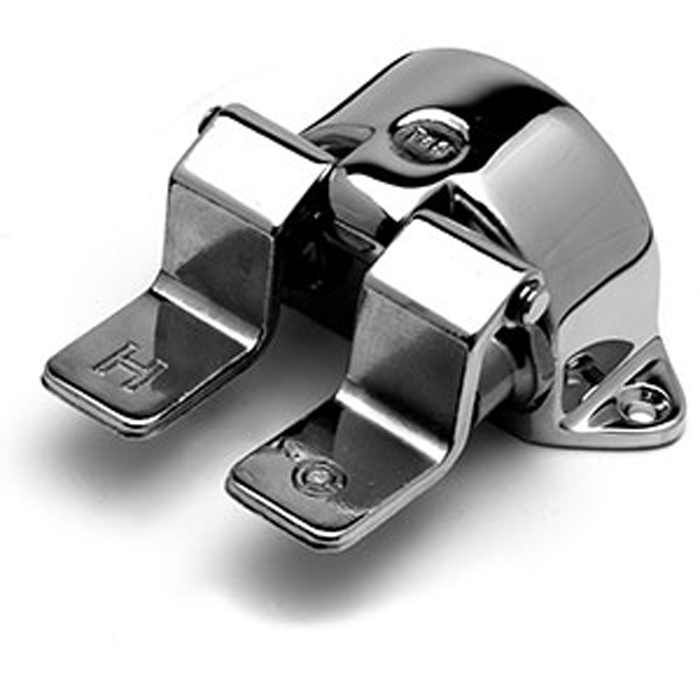

T&S Double Foot Pedal Valve Floor Mount

T&S Double Foot Pedal Valve Floor Mount
T&S Double Foot Pedal Valve Floor Mount
$205.97/EACH
Part #B-0502
T&S Brass
B-0502 Double Pedal Valve Inlets 2-1/2" Centers 1/2"" NPT Inlets and Outlets
Specifications:
Part #: B-0502
Part Description: Double Pedal Valve, Inlets 2-1/2 Centers, 1/2 NPT Inlets & Outlet
UPC: 671262005210
Weight: 4.66
Unit of Measure: EA
Box Dims: 10x9x4
Harmonizing No: 8481.80.5090
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Mount Type (Wall or Deck): Floor
Cartridge Type: Self-Closing
Inlets: 1/2 NPT Female
Outlets: 1/2 NPT Female
Engineering Spec: Floor mount double pedal valve with polished chrome plated solid brass body and pedals, metering cartridges, 1/2 NPT female inlets and outlet and mounting screws. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.
Assembled Dimensions - H (In): 2.563
Assembled Dimensions - W (In): 5.313
Assembled Dimensions - D (In): 5.188
Primary Product Color: Brass, Silver
Product Finish: Chrome Plated
Warranty: One Year (Limited)
FEATURE1: Floor mount double pedal valve
FEATURE2: Hot and cold pedals
FEATURE3: Pedals flip up for floor cleaning
FEATURE4: Metering Cartridges
FEATURE5: 1/2 NPT female inlets
FEATURE6: 1/2 NPT female outlet
FEATURE7: Mounting screws included
FEATURE8: Material: Polished chrome plated brass body and pedals
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 12.00 GPM @ 60 psi
