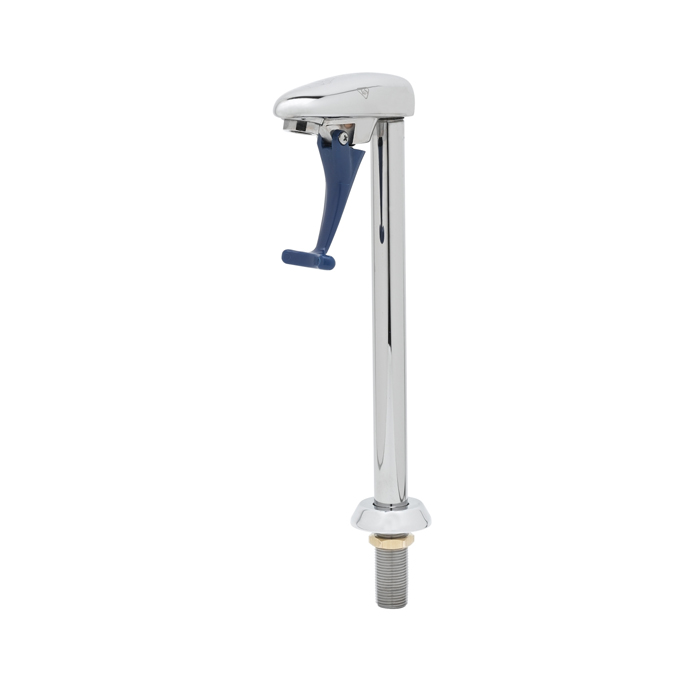

T&S BRASS B-1210-16 GLASS FILLER 16" DECK MOUNT PEDESTAL

T&S BRASS B-1210-16 GLASS FILLER 16" DECK MOUNT PEDESTAL
T&S BRASS B-1210-16 GLASS FILLER 16" DECK MOUNT PEDESTAL
$187.82/EACH
Part #B-1210-16
T&S Brass
B-1210-16 Glass Filler, 16"" Deck Mount Pedestal, 1/2"" NPT Male Shank
Specifications:
Part #: B-1210-16
Part Description: Glass Filler, 16 Deck Mount Pedestal, 1/2 NPT Male Shank
UPC: 671262706391
Weight: 4.4
Unit of Measure: EA
Box Dims: 12x28x4
Harmonizing No: 8481.80.5090
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Engineering Spec: 16 high deck mount glass filler with polished chrome plated brass body, adjustable flow outlet, push back actuation arm, adjustable deck flange, pedestal and 1/2 NPT male inlet. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Warranty: One Year (Limited)
FEATURE1: 16 high deck mount glass filler
FEATURE2: Torx wrench adjustable flow outlet (wrench included)
FEATURE3: Dark blue push back arm
FEATURE4: Instantaneous shut-off
FEATURE5: 1/2 NPT male inlet
FEATURE6: Pedestal w/ adjustable 2 flange
FEATURE7: Material: Polished chrome plated brass body & pedestal, chrome plated metal flange and thermoplastic arm
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 0.25 GPM min @ 60 psi
