T&S BRASS B-1230-WFK WATER STATION W/ 8" PEDESTAL TYPE

T&S BRASS B-1230-WFK WATER STATION W/ 8" PEDESTAL TYPE
T&S BRASS B-1230-WFK WATER STATION W/ 8" PEDESTAL TYPE
$652.30/EACH
Part #B-1230-WFK
T&S Brass

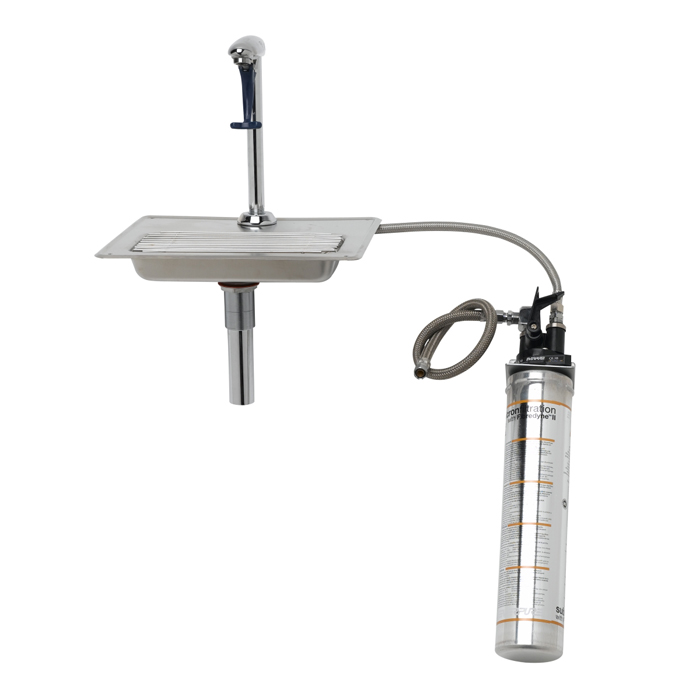

B-1230-WFK Water Station w/ 8"" Pedestal Type Glass Filler, Drip Pan, Drain & Water Filtration Kit
Specifications:
Part #: B-1230-WFK
Part Description: Water Station w/ 8 Pedestal Type Glass Filler, Drip Pan, Drain & Water Filtration Kit
UPC: 671262777933
Weight: 13.2
Unit of Measure: EA
Box Dims: 12x28x4
Harmonizing No: 8481.80.5090
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Engineering Spec: Deck mount water station with polished chrome plated brass pedestal type glass filler, adjustable flow outlet, push back actuation arm, pedestal with adjustable deck flange, 18 gauge stainless steel drip pan with drop-in grid and 1 1/4 drain. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
Warranty: One Year (Limited)
FEATURE1: Deck mount water station
FEATURE2: 8 deck mount glass filler w/ polished chrome plated brass body
FEATURE3: Torx wrench adjustable flow outlet (wrench included)
FEATURE4: Dark blue push back arm
FEATURE5: Instantaneous shut-off
FEATURE6: 1/2 NPT male inlet
FEATURE7: Pedestal w/ adjustable 2 flange
FEATURE8: Drip pan w/ drop-in grid
FEATURE9: 1 1/4 drain
FEATURE10: Replaceable water filtration cartridge and docking station
FEATURE11: Material: Polished chrome plated brass body & pedestal, chrome plated metal flange, 18 gauge stainless steel drip pan and stainless steel grid
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 0.25 GPM min @ 60 psi
PERFORMANCE 4: Discharge Rate: 18.00 GPM
