MIFAB F1102T-C-XS5-1-5 SQ FLOOR DRAIN /HD STRAINER FLOOR AREAS

MIFAB F1102T-C-XS5-1-5 SQ FLOOR DRAIN /HD STRAINER  FLOOR AREAS
MIFAB F1102T-C-XS5-1-5 SQ FLOOR DRAIN /HD STRAINER FLOOR AREAS
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #F1102T-C-XS5-1-5

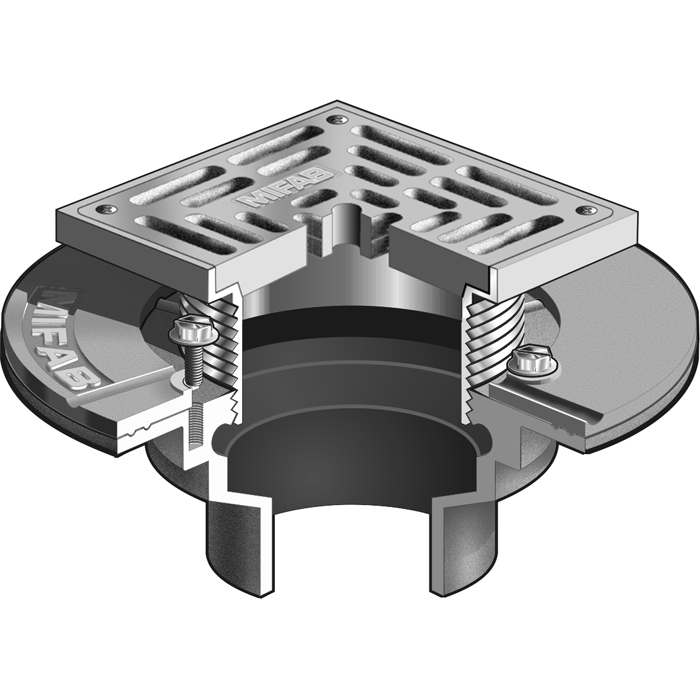

�MIFAB Series F1100-C-XS
SQUARE FLOOR DRAIN WITH HEAVY DUTY STRAINER FOR MEMBRANE FLOOR AREAS
Mifab      F1102T-C-XS5-1-5

Specification:
MIFAB Series F1100-C-XS lacquered cast iron floor drain with anchor flange, cast iron membrane clamp ring with primary and secondary weepholes for waterproofing membrane, and standard heavy duty, (specify size), (specify material finish) square. (For non-membrane floors, use MIFAB F1100-XS Series.)

Function:
Used in showers, kitchens, restrooms and other membrane finished areas where heavy wheeled loads are expected and a heavy duty rated strainer is required. Square adjustable strainer is used for floors that are finished of material or straight line patterns. Membrane clamp is provided to secure the waterproofing membrane.

SPECIFICATIONS
Pipe Size 2 Inch
Outlet T   Threaded
Suffix Options -C   Membrane clamp
5   Square top assembly (5� x 5�)
-1   Nickel bronze strainer
-5   Sediment bucket

**Additional Freight Required on all Drain Shipments**
