MIFAB F1104P-C-RS517-3-7 FLOOR DRAIN / RECTANGULAR STRAINER

MIFAB F1104P-C-RS517-3-7 FLOOR DRAIN / RECTANGULAR STRAINER
MIFAB F1104P-C-RS517-3-7 FLOOR DRAIN / RECTANGULAR STRAINER
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #F1104P-C-RS517-3-7
MIFAB Series F1100-C-RS
FLOOR DRAIN WITH RECTANGULAR STRAINER FOR MEMBRANE FLOOR AREAS
Mifab      F1104P-C-RS517-3-7

Specification:

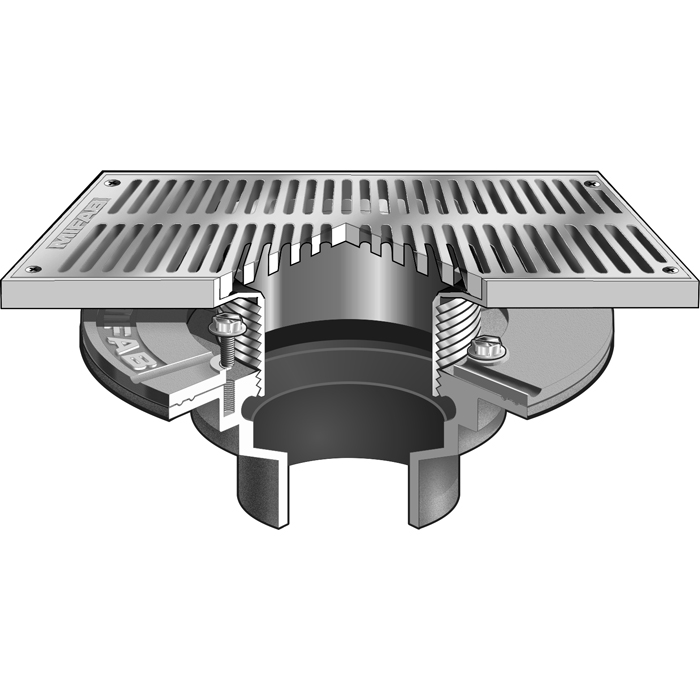

MIFAB Series F1100-C-RS lacquered cast iron floor drain with anchor flange, cast iron membrane clamp ring with primary and secondary weepholes for waterproofing membrane, and �RS� (specify size) rectangular (specify material finish) strainer. (For non-membrane floors, use MIFAB F1100-RS Series.) Please note 5�x17� sized strainer available in stainless steel only. For RS48, grate style is different compared to larger model.

Function:
Used in showers, gutters and other membrane finished areas where a large grate free area is required and limited width is available. Membrane clamp is provided to secure the waterproofing membrane.

SPECIFICATIONS
Pipe Size 4 Inch
Outlet P   Push on outlet
Suffix Options -C   Membrane clamp
517   Top assembly (5�� x 17��)
-3   Stainless steel strainer
-7   1/2" trap seal primer connection

**Additional Freight Required on all Drain Shipments**
