Part #F1213C-1
MIFAB Series F1210C
FLOOR DRAIN FOR MEMBRANE FLOOR AREAS
Mifab      F1213C-1

Specification:

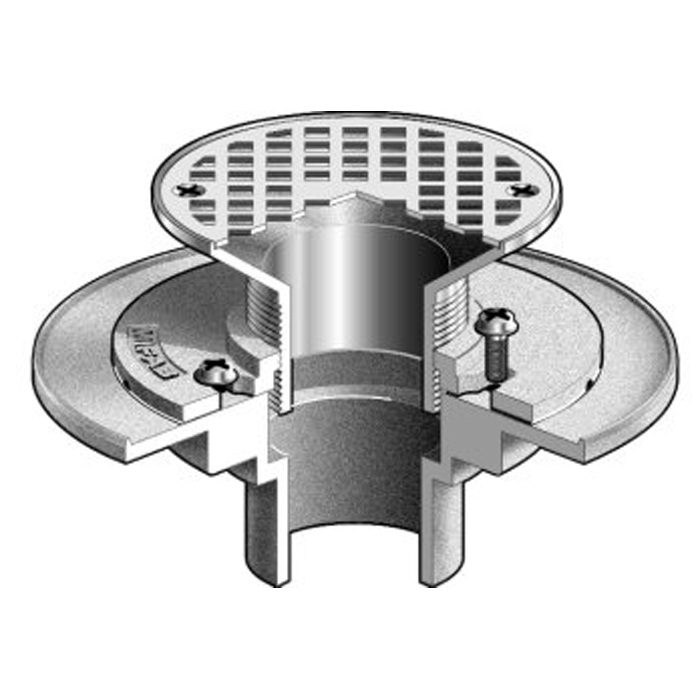

MIFAB Series F1210C lacquered cast iron floor drain with anchor flange, cast iron clamp ring with weepholes for waterproofing membrane, and (specify material finish) strainer.

Function:
Used in showers, kitchens, restrooms and other membrane finished areas. Round, adjustable strainer is used with all types of poured finished floors. Membrane clamp is provided to secure the waterproofing membrane.

SUFFIX OPTIONAL VARIATIONS
-1 Nickel bronze strainer
-2 Polished brass strainer
-4 Ductile iron grate (5" x 8" only)
-6 Security screws (T-20 Torx & pin)
-11 Acid resistant epoxy coated body
-13 Galvanized body
-15 Extension
-34 Closure plug
-49 Chrome Plated Strainer
-ARRA ARRA (Stimulus Act) compliant product
-BA Buy American Act compliant product
-F4 4" Round funnel
-F6 6" Round funnel
-G Oval 4" x 9" funnel
-HP Heel proof grate (1/4" maximum grate opening size, -3 only)
-J 6" x 3" x 1" funnel
(Standard) No hub outlet
P Push on outlet
-PA Pennsylvania Steel Act compliant product
T Threaded outlet (2", 3", 4")
X Inside caulk outlet
