T&S BRASS B-0114-01B PRE-RINSE ROTO-FLEX DESIGN

T&S BRASS B-0114-01B PRE-RINSE ROTO-FLEX DESIGN
T&S BRASS B-0114-01B PRE-RINSE ROTO-FLEX DESIGN
$1,152.80/EACH
Part #B-0114-01B
T&S Brass

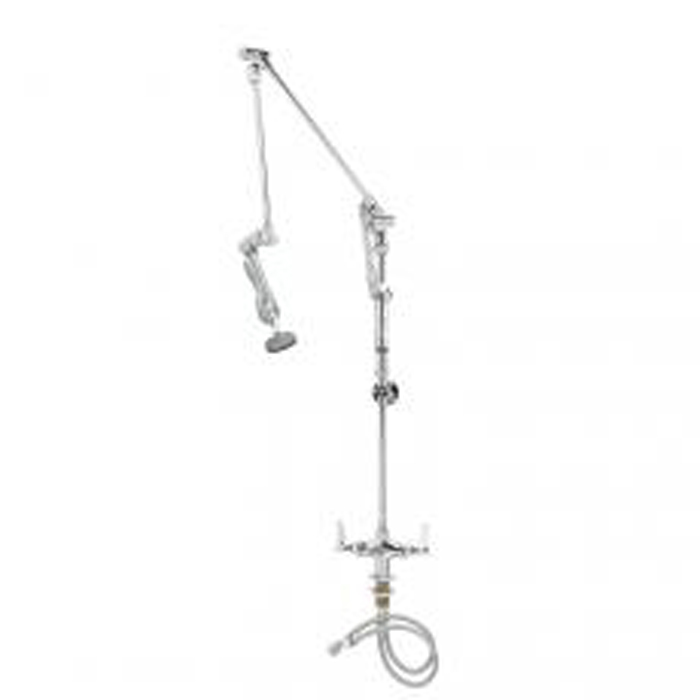

B-0114-01B Pre-Rinse, Roto-Flex Design, Single Hole Base, Wall Bracket
Specifications:
Part #: B-0114-01B
Part Description: Pre-Rinse, Roto-Flex Design, Single Hole Base, Wall Bracket
UPC: 671262188104
Weight: 18
Unit of Measure: EA
Box Dims: 12x28x4
Harmonizing No: 8481.80.5060
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Engineering Spec: Single hole deck mount mixing faucet with polished chrome plated brass body, retractable arm assembly, down pipe with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, lever handles, wall bracket, and 18 flexible stainless steel supply hoses with 1/2 NPSM / 5/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
Warranty: Three Year (Limited)
California Energy Commission CEC-400 (Plumbing): Y
FEATURE1: Single hole deck mount mixing faucet w/ polished chrome plated brass body
FEATURE2: Retractable arm assembly
FEATURE3: Down pipe w/ heat resistant gray handle and hold down ring
FEATURE4: 1.15 GPM spray valve
FEATURE5: Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
FEATURE6: Lever handles w/ color coded indexes
FEATURE7: 18 flexible stainless steel supply hoses w/ 1/2 NPSM / 5/8 O.D. compression connections
FEATURE8: 6 wall bracket
FEATURE9: 42 high at normal hanging position
FEATURE10: 21 1/2 overhang at maximum pull down
FEATURE11: 1 clearance in maximum pull down position
FEATURE12: Material: Polished chrome plated brass body, retractable arm assembly, down pipe & spray valve and chrome plated metal handles
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
