T&S BRASS B-0133-01 EZ INSTALL PRE-RINSE SPRING ACTION

T&S BRASS B-0133-01 EZ INSTALL PRE-RINSE SPRING ACTION
T&S BRASS B-0133-01 EZ INSTALL PRE-RINSE SPRING ACTION
$526.62/EACH
Part #B-0133-01
T&S Brass

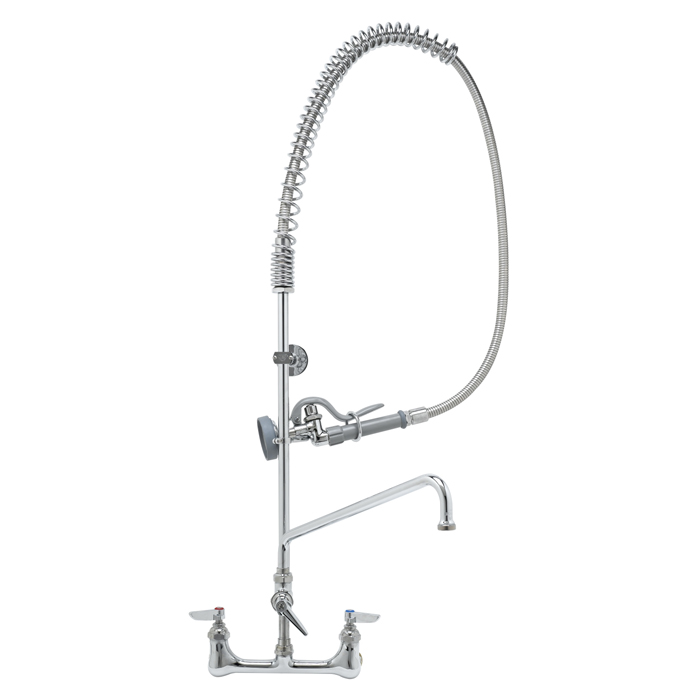

B-0133-01 EasyInstall Pre-Rinse, Spring Action, 8"" Wall Mount, Add-On Faucet w/ 14"" Swing Nozzle
Specifications:
Part #: B-0133-01
Part Description: EasyInstall Pre-Rinse, Spring Action, 8 Wall Mount, Add-On Fct w/ 14 Swing Nozzle
UPC: 671262172974
Weight: 14.5
Unit of Measure: EA
Box Dims: 12x28x4
Harmonizing No: 8481.80.5060
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Mount Type (Wall or Deck): WALL
Cartridge Type: Quarter-Turn Eterna Cartridge w/ Spring Checks
Handle Type: Lever
Nozzle: Swivel
Inlets: 1/2 NPT Male
Engineering Spec: 8 wall mount mixing faucet with polished chrome plated brass body, add-on faucet with compression cartridge and lever handle, 14 swing nozzle with stream regulator outlet, 18 riser, 56 flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, compression cartridges with spring checks, lever handles, 1/2 NPT female inlets, 9 adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
Assembled Dimensions - H (In): 37.625
Assembled Dimensions - W (In): 12.625
Assembled Dimensions - D (In): 16.688
Primary Product Color: Silver
Product Finish: Chrome Plated
Warranty: Three Year (Limited)
California Energy Commission CEC-400 (Plumbing): Y
FEATURE1: 8 wall mount mixing faucet w/ polished chrome plated brass body
FEATURE2: EasyInstall add-on faucet w/ polished chrome plated brass body
FEATURE3: 14 swing nozzle w/ stream regulator outlet (Series 1)
FEATURE4: 18 riser
FEATURE5: 56 flexible stainless steel hose w/ heat resistant gray handle and hold down ring
FEATURE6: 1.15 GPM spray valve
FEATURE7: Quarter-turn Eterna compression cartridges with spring checks to prevent cross flow of water
FEATURE8: Lever handles w/ color coded indexes
FEATURE9: 1/2 NPT male inlets with 1 5/16 hex flanges
FEATURE10: 9 adjustable wall bracket
FEATURE11: Material: Polished chrome plated brass body, add-on faucet, riser & spray valve body, stainless steel hose, and chrome plated metal handles
PERFORMANCE 1: Pressure: 20 - 125 psi [1.38 - 8.60 bar]
PERFORMANCE 2: Temperature: 40 F - 140 F [4.44 C - 60 C]
PERFORMANCE 3: Flow Rate: Spray Valve - 1.15 [4.35 0.00 GPM @ 60 psi [4.14 bar]
PERFORMANCE 4: Flow Rate: Add-On Faucet - 9.73 GPM [36.83 L/min]@ 60 psi [4.14 bar]
