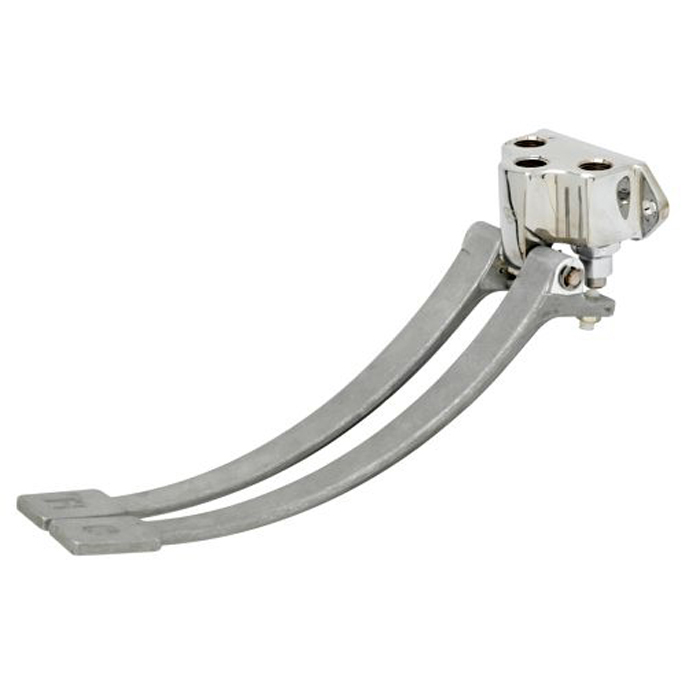

T&S Double Foot Pedal Valve Wall Mounted

T&S Double Foot Pedal Valve Wall Mounted
T&S Double Foot Pedal Valve Wall Mounted
$263.45/EACH
Part #B-0504
T&S Brass
B-0504 Double Pedal Valve, Wall Mount, Inlets 2-1/2"" Centers, 1/2"" NPT Inlet & Outlet
Specifications:
Part #: B-0504
Part Description: Double Pedal Valve, Wall Mount, Inlets 2-1/2 Centers, 1/2 NPT Inlets & Outlet
UPC: 671262005234
Weight: 6.6
Unit of Measure: EA
Box Dims: 23x14x6
Harmonizing No: 8481.80.5090
Country of Origin: US
Low Lead Content: Yes
BAA: Yes
Mount Type (Wall or Deck): Wall
Cartridge Type: Self-Closing
Inlets: 1/2 NPT Female
Outlets: 1/2 NPT Female
Engineering Spec: Wall mount double pedal valve, polished chrome plated solid brass body, adjustable height aluminum pedals, self-closing valves, 1/2 NPT female inlets and outlet, mounting screws. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372.
Assembled Dimensions - H (In): 7.5
Assembled Dimensions - W (In): 5.375
Assembled Dimensions - D (In): 14.75
Primary Product Color: Brass, Silver
Product Finish: Chrome Plated, Satin Finish Aluminum
Warranty: One Year (Limited)
FEATURE1: Wall mount double pedal valve
FEATURE2: Adjustable height hot and cold pedals
FEATURE3: Pedals flip up for floor cleaning
FEATURE4: Self-closing valves
FEATURE5: 1/2 NPT female inlets on 2 7/16 centers
FEATURE6: 1/2 NPT outlet
FEATURE7: Wall mounting screws included
FEATURE8: Material: Polished chrome plated brass body and satin finish aluminum pedal
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 12.00 GPM @ 60 psi
