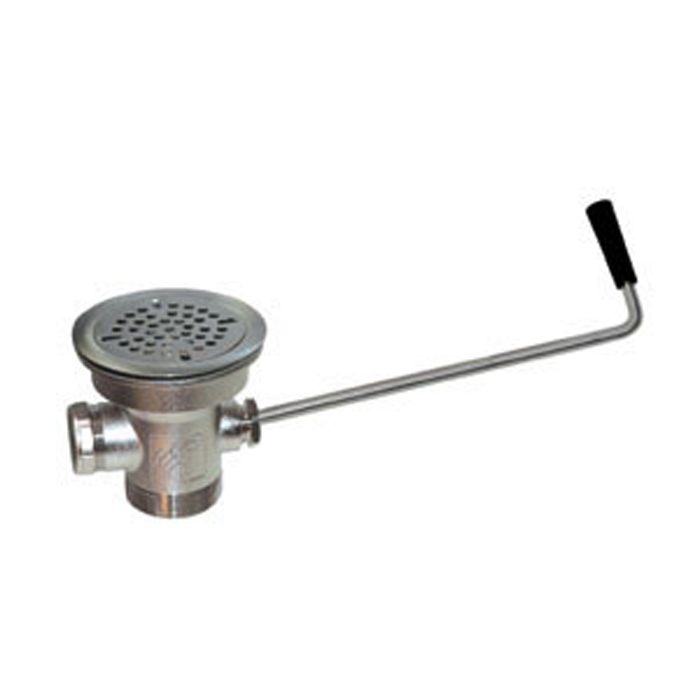

CHG D55-7510-RM Top-Line Twist Handle Waste Outlet

CHG D55-7510-RM Top-Line Twist Handle Waste Outlet
CHG D55-7510-RM Top-Line Twist Handle Waste Outlet
Quantity Price
1 to 9 $78.56
10 and up $72.84
Part #D55-7510-RM
Component Hardware Group
D55-7510-RM
TOP-LINE� Twist Handle Waste Outlet With Capped Overflow Outlet, 1-1/2 inch & 2 inch NPT, 3-1/2 inch Sink Opening, 4-1/2 inch Face Flange, Flat Strainer, With Brass Reducer
CHG Component Hardware Group D55-7510-RM TOP-LINE� Twist Handle Waste OutletUniversal body provides both 1-1/2" (38mm) and 2" (51mm) waste outlet connections

  • 2" (51mm) - 1-1/2" (38mm) Male Reducer
  • Snap-in stainless steel strainer
  • Heavy duty body
  • Self-centering flange
  • Stainless steel handle
  • *Optional 1-1/4� (32mm) complete overflow assembly


  • Specification:
    2" to 1-1/2" Reducer Yes
    Drain Material Nickel Plated Zinc Die Cast
    Drain Outlet Size 2 in, 51 mm
    Face Flange Diameter 111 mm, 4 3/8 in
    Handle Length 267 mm, 10-1/2 in
    Handle Type Twist
    Opening Size (NPS) 51 mm, 1 1/2 in
    Opening Size (NPT) 38 mm, 1 1/2 in
    Overflow Assembly No
    Overflow Outlet Yes
    Required Sink Opening Diameter 90 mm, 3 1/2 in
    Strainer Type Flat


    Genuine Component Hardware Group Repair Parts.
