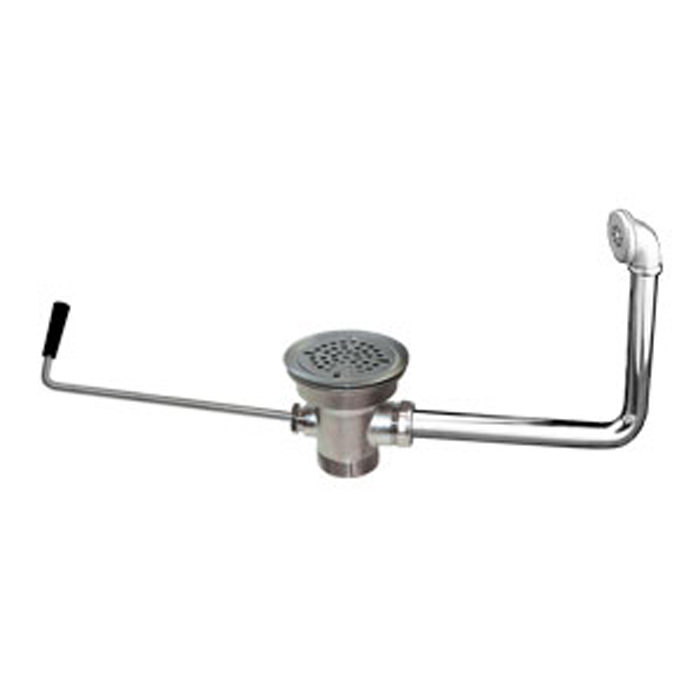

CHG D55-7515-R Top-Line Twist Handle Waste Outlet

CHG D55-7515-R Top-Line Twist Handle Waste Outlet
CHG D55-7515-R Top-Line Twist Handle Waste Outlet
Quantity Price
1 to 9 $132.01
10 and up $122.40
Part #D55-7515-R
Component Hardware Group
D55-7515-R
TOP-LINE� Twist Handle Waste Outlet With Overflow Assembly, 1-1/2 inch & 2 inch NPT, 3-1/2 inch Sink Opening, 4-3/8 inch Face Flange, Flat Strainer, With Reducer
CHG Component Hardware Group D55-7515-R TOP-LINE� Twist Handle Waste Outlet Universal body provides both 1-1/2" (38mm) and 2" (51mm) waste outlet connections

  • Universal body provides both 1-1/2" (38mm) and 2" (51mm) waste outlet connections
  • Snap-in stainless steel strainer
  • Heavy duty body
  • Self-centering flange
  • Stainless steel handle
  • 1-1/4" (32mm) complete overflow assembly


  • Specification:
    2" to 1-1/2" Reducer Yes
    Drain Material Stainless Steel
    Drain Outlet Size 51 mm, 38 mm, 2 in, 1 1/2 in
    Face Flange Diameter 111 mm, 4 3/8 in
    Handle Length 305 mm, 12 in
    Handle Type Twist
    Opening Size (NPS) 51 mm, 2 in
    Opening Size (NPT) 38 mm, 1 1/2 in
    Overflow Assembly Yes
    Overflow Outlet Yes
    Required Sink Opening Diameter 90 mm, 3 1/2 in
    Strainer Type Flat


    Genuine Component Hardware Group Repair Parts.
