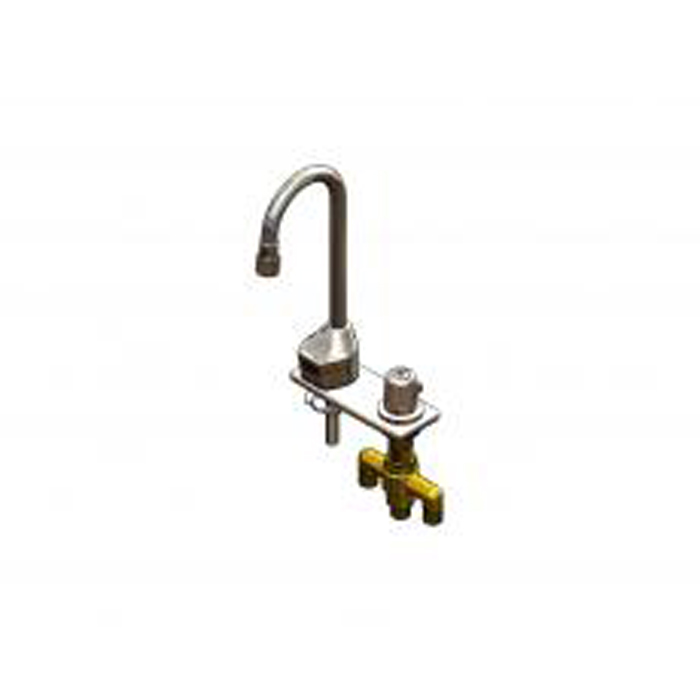

T&S Brass EC-3100-SMT4 Checkpoint Electronic Faucet Deck Mount

T&S Brass EC-3100-SMT4 Checkpoint Electronic Faucet Deck Mount
T&S Brass EC-3100-SMT4 Checkpoint Electronic Faucet Deck Mount
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #EC-3100-SMT4
Specifications:
Part #: EC-3100-SMT4
Part Description: ChekPoint Elec Faucet, Deck Mt, GN, Side Mt TMV, 4 C-C Deck Plate
UPC: 671262767729
Weight: 9.701
Unit of Measure: EA
Box Dims: 16x11x4
Harmonizing No: 8481.80.9020
Country of Origin: TAIWAN
Low Lead Content: Yes
Engineering Spec: 4 combination faucet and side mount control, single hole deck mount electronic sensor faucet with polished chrome plated brass body, 4 1/8 rigid gooseneck, 2.2 GPM vandal resistant aerator, AC/DC control module with internal flow control setting switches, above deck side mount adjustable thermostatic mixing valve with check valves, 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ASSE 1070 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements.
Brand/Trade Name: ChekPoint
Warranty: Three Year (Limited)
California CEC-400 (Power Supplies): Y
FEATURE1: 4 combination faucet and side mount control
FEATURE2: Single hole deck mount polished chrome plated brass body
FEATURE3: 4 1/8 rigid gooseneck
FEATURE4: 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06)
FEATURE5: Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings
FEATURE6: Optional auto flush feature flows water for 30 seconds after every 12 inactive hours
FEATURE7: Plug in AC transformer or (4) AA battery (DC) power options
FEATURE8: Above deck side mount adjustable thermostatic mixing valve w/ check valves
FEATURE9: 10 polished chrome plated deck plate
FEATURE10: 18 flexible stainless steel supply hoses w/ 3/8 compression connections
FEATURE11: Low battery LED indicator light
FEATURE12: Material: Polished chrome plated brass body, tubular spout & deck plate and chrome plated metal handle
PERFORMANCE 1: Pressure: 20 - 125 psi
PERFORMANCE 2: Temperature: 40 F - 140 F
PERFORMANCE 3: Flow Rate: 2.20 GPM @ 60 psi
PERFORMANCE 4: Water Consumption: @ 10 sec = .37 gal
