T&S BRASS EC-3100-TMV4V05 CHECKPOINT ELEC FAUCET DECK MOUNT
$774.68/EACH
| Part # | EC-3100-TMV4V05 |
|---|
T&S Brass

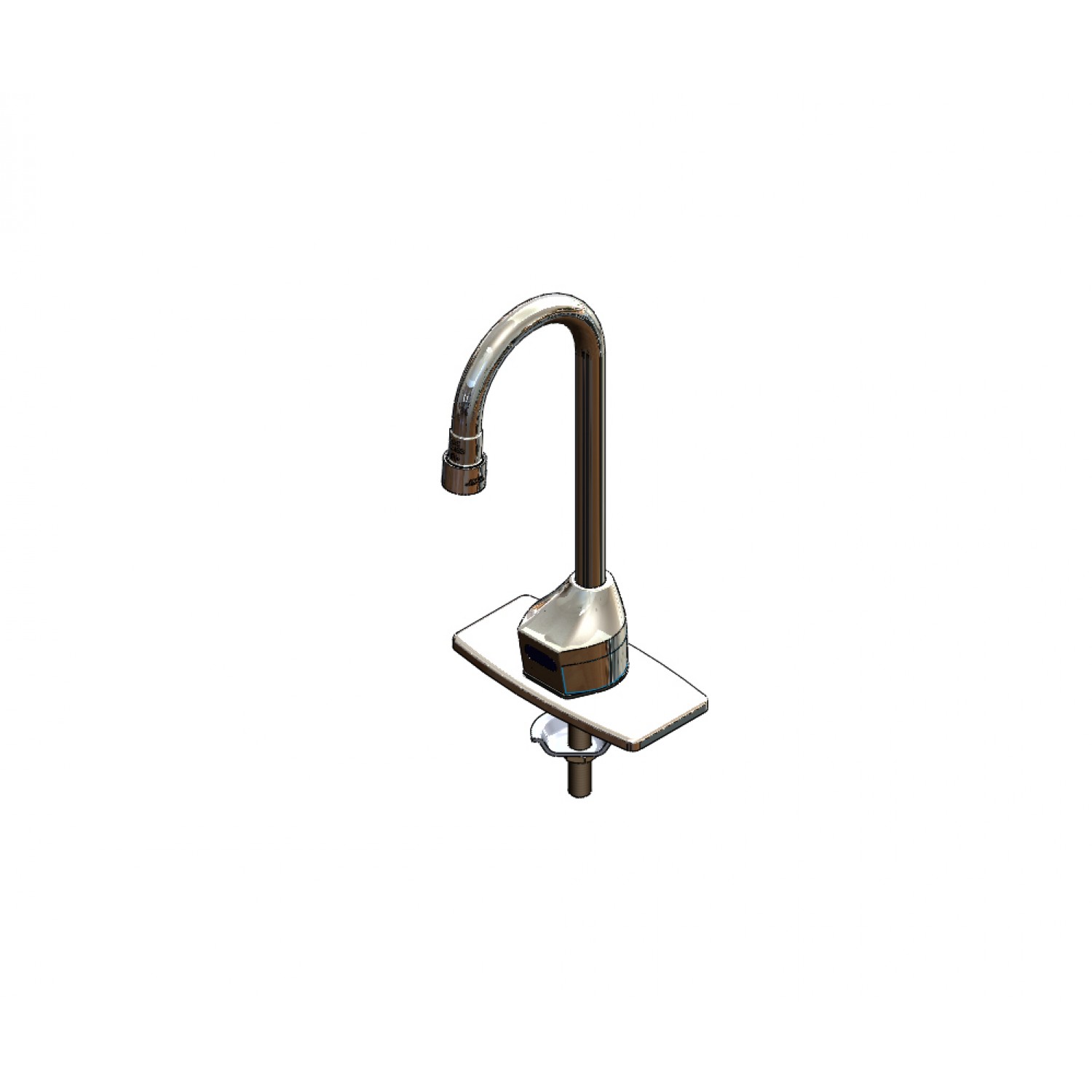

EC-3100-TMV4V05 Checkpoint Elec Faucet, Deck Mount, Gooseneck, AC/DC, 0.5 gpm Vandal Resistant Outlet, 4"" Deck Plate, TMV
EC-3100-TMV4V05 Checkpoint Elec Faucet, Deck Mount, Gooseneck, AC/DC, 0.5 gpm Vandal Resistant Outlet, 4"" Deck Plate, TMV
Related Items
| Part #: | EC-3100-TMV4V05 |
|---|---|
| Part Description: | ChekPoint Elec Faucet, Deck Mount, Gooseneck, AC/DC, 0.5 gpm VR Outlet, 4 DeckPlate, TMV |
| UPC: | 671262772785 |
| Weight: | 9.049 |
| Unit of Measure: | EA |
| Box Dims: | 16x11x4 |
| Harmonizing No: | 8481.80.9020 |
| Country of Origin: | TAIWAN |
| Nozzle: | Tubular;Gooseneck |
| Engineering Spec: | Single hole deck mount electronic sensor faucet with polished chrome plated brass body and 4 1/8 rigid gooseneck, 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module with internal flow control setting switches, thermostatic temperature mixing valve with integral check valves and 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, UL 1951 and ASSE 1070. Meets ADA ANSI/ICC A117.1 requirements. |
| Brand/Trade Name: | ChekPoint |
| Warranty: | Three Year (Limited) |
| California Energy Commission CEC-400 (Plumbing): | Y |
| FEATURE1: | Single hole deck mount w/ polished chrome plated brass body |
| FEATURE2: | 4 1/8 rigid gooseneck |
| FEATURE3: | 0.5 GPM vandal resistant non-aerated, Series 6 (B-0199-06-N05) |
| FEATURE4: | 4 c/c deck plate w/ gasket & mounting hardware |
| FEATURE5: | Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings |
| FEATURE6: | Optional auto flush feature flows water for 30 seconds after every 12 inactive hours |
| FEATURE7: | Plug in AC transformer or (4) AA battery (DC) power options |
| FEATURE8: | Thermostatic temperature mixing valve w/ integral check valves |
| FEATURE9: | 18 flexible stainless steel supply hoses w/ 3/8 compression connections |
| FEATURE10: | Low battery LED indicator light |
| FEATURE11: | Material: Polished chrome plated brass body, deck plate & tubular spout |
| PERFORMANCE 1: | Pressure: 20 - 125 psi |
| PERFORMANCE 2: | Temperature: 40 F - 140 F |
| PERFORMANCE 3: | Flow Rate: 0.50 GPM @ 60 psi |
| PERFORMANCE 4: | Water Consumption: @ 10 sec = .08 gal |
