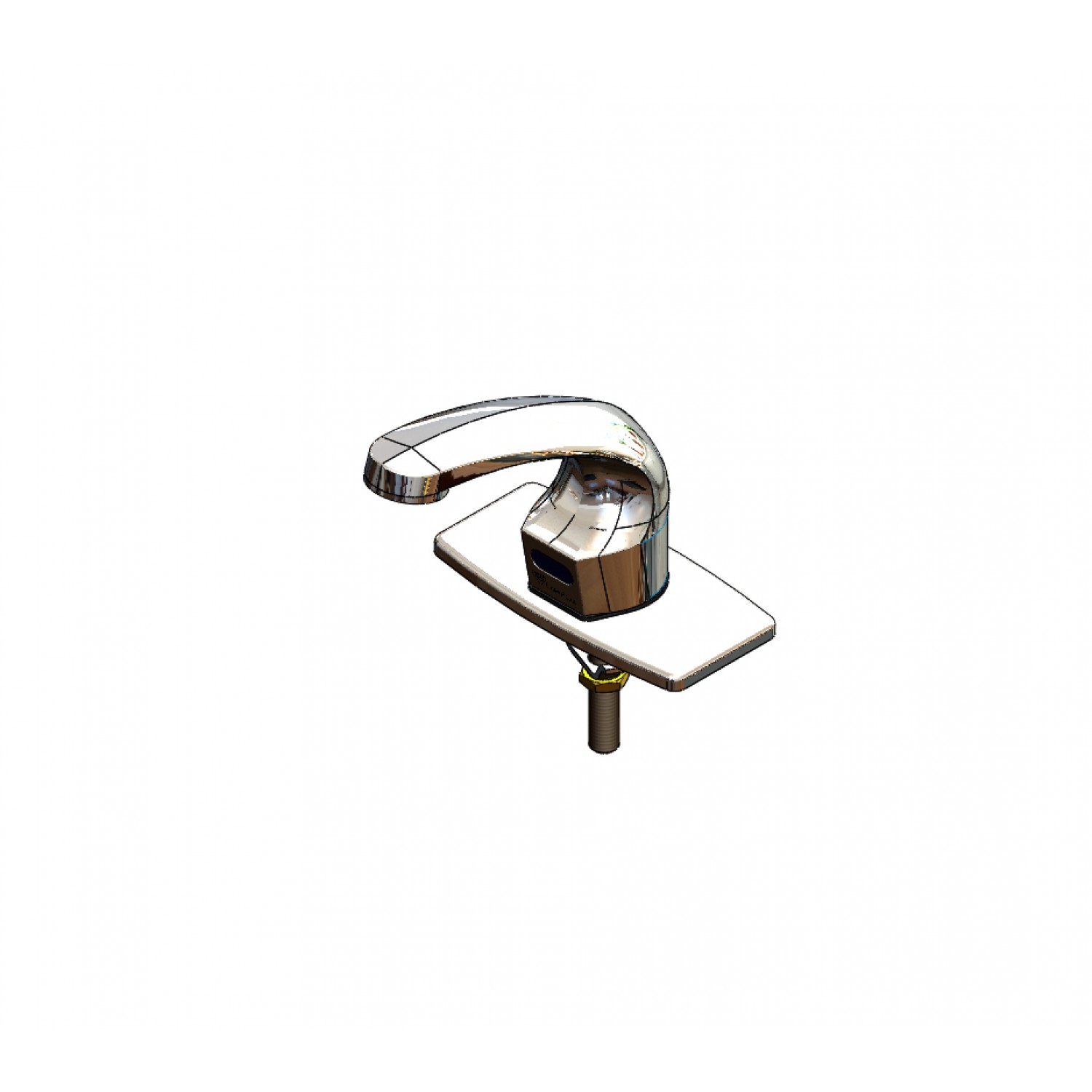

T&S BRASS EC-3102-TMV4V05 CHECKPOINT ELEC FAUCET DECK MOUNT
$674.30/EACH
| Part # | EC-3102-TMV4V05 |
|---|
T&S Brass
EC-3102-TMV4V05 Checkpoint Electronic Faucet, Deck Mount, Cast Spout, AC/DC, 4"" Deck Plate, 0.5gpm Vandal Resistant Outlet, TMV
EC-3102-TMV4V05 Checkpoint Electronic Faucet, Deck Mount, Cast Spout, AC/DC, 4"" Deck Plate, 0.5gpm Vandal Resistant Outlet, TMV
Related Items
| Part #: | EC-3102-TMV4V05 |
|---|---|
| Part Description: | ChekPoint Elec Faucet, Deck Mount, Cast Spout, AC/DC, 4 Deck Plate, 0.5gpm VR Outlet, TMV |
| UPC: | 671262771573 |
| Weight: | 8.934 |
| Unit of Measure: | EA |
| Harmonizing No: | 8481.80.9020 |
| Country of Origin: | TAIWAN |
| Low Lead Content: | Yes |
| Engineering Spec: | Single hole deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 4 centerline deck plate, 0.5 GPM vandal resistant non-aerated spray device, AC/DC control module with internal flow control setting switches, thermostatic temperature mixing valve with check valves and 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, UL 1951 and ASSE 1070. Meets ADA ANSI/ICC A117.1 requirements. |
| Brand/Trade Name: | ChekPoint |
| Warranty: | Three Year (Limited) |
| California Energy Commission CEC-400 (Plumbing): | Y |
| FEATURE1: | Single hole deck mount faucet w/ polished chrome plated brass body w/ integral spout |
| FEATURE2: | 0.5 GPM vandal resistant non-aerated spray device, Series 8 (B-0199-08-N05) |
| FEATURE3: | 4 centerline deck plate |
| FEATURE4: | Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings |
| FEATURE5: | Optional auto flush feature flows water for 30 seconds after every 12 inactive hours |
| FEATURE6: | Plug in AC transformer or (4) AA battery (DC) power options |
| FEATURE7: | Thermostatic temperature mixing valve w/ check valves |
| FEATURE8: | 18 flexible stainless steel supply hoses w/ 3/8 compression connections |
| FEATURE9: | Low battery LED indicator light |
| FEATURE10: | Material: Polished chrome plated brass body & tubular spout |
| PERFORMANCE 1: | Pressure: 20 - 125 psi |
| PERFORMANCE 2: | Temperature: 40 F - 140 F |
| PERFORMANCE 3: | Flow Rate: 0.50 GPM @ 60 psi |
| PERFORMANCE 4: | Water Consumption: @ 10 sec = .08 gal |
