T&S BRASS EC-3102-VF05 CHECKPOINT ELEC FAUCET DECK MOUNT
$446.60/EACH
| Part # | EC-3102-VF05 |
|---|
T&S Brass

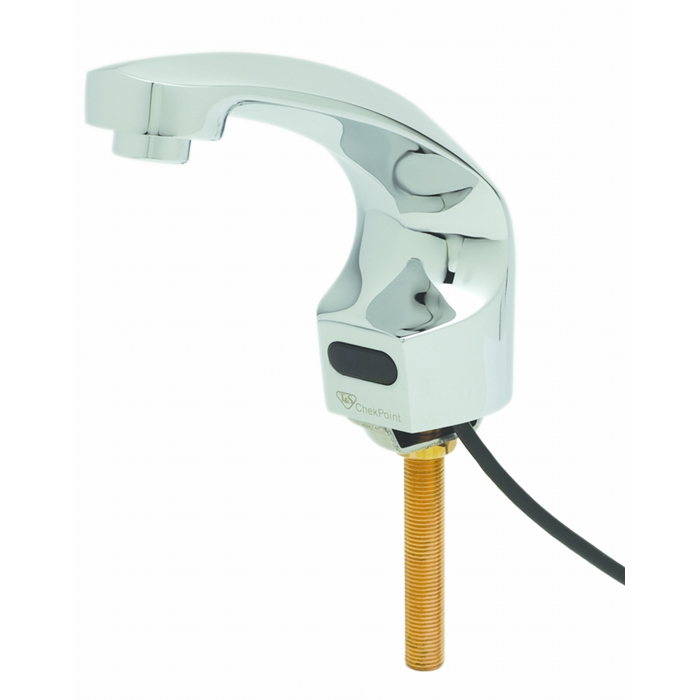

EC-3102-VF05 Checkpoint Electronic Faucet, Deck Mount, Single Hole Spout, AC/DC Control Module, 0.5 GPM Vandal Resistant Spray Device
EC-3102-VF05 Checkpoint Electronic Faucet, Deck Mount, Single Hole Spout, AC/DC Control Module, 0.5 GPM Vandal Resistant Spray Device
Related Items
| Part #: | EC-3102-VF05 |
|---|---|
| Part Description: | ChekPoint Elec Fct, Deck Mt, Single Hole Spout, AC/DC Ctrl Module, 0.5 GPM VR Spray Device |
| UPC: | 671262740869 |
| Weight: | 7.4 |
| Unit of Measure: | EA |
| Harmonizing No: | 8481.80.9020 |
| Country of Origin: | TAIWAN |
| Mount Type (Wall or Deck): | DECK |
| Body Type: | Electronic |
| Nozzle: | Rigid |
| Inlets: | 3/8in Compression |
| Engineering Spec: | Single hole deck mount electronic sensor faucet with polished chrome plated brass body with integral spout, 0.5 GPM vandal resistant non- aerated spray device, AC/DC control module with internal flow control setting switches, temperature control mixing valve with check valves and 18 flexible stainless steel supply hoses with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements. |
| Batteries Included: | Y |
| Number of Batteries: | 4 |
| Battery Type: | Alkaline |
| Brand/Trade Name: | ChekPoint |
| Assembled Dimensions - H (In): | 5.063 |
| Assembled Dimensions - W (In): | 2.25 |
| Assembled Dimensions - D (In): | 4.875 |
| Primary Product Color: | Brass, Silver |
| Product Finish: | Chrome Plated |
| Warranty: | Three Year (Limited) |
| California CEC-400 (Power Supplies): | Y |
| California Energy Commission CEC-400 (Plumbing): | Y |
| FEATURE1: | Single hole deck mount faucet w/ polished chrome plated brass body w/ integral spout |
| FEATURE2: | 0.5 GPM vandal resistant non-aerated spray device, Series 8 (B-0199-08-N05) |
| FEATURE3: | Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings |
| FEATURE4: | Optional auto flush feature flows water for 30 seconds after every 12 inactive hours |
| FEATURE5: | Plug in AC transformer or (4) AA battery (DC) power options |
| FEATURE6: | Mechanical temperature mixing valve w/ check valves |
| FEATURE7: | 18 flexible stainless steel supply hoses w/ 3/8 compression inlet connections |
| FEATURE8: | Low battery LED indicator light |
| FEATURE9: | Material: Polished chrome plated brass body |
| PERFORMANCE 1: | Pressure: 20 - 125 psi |
| PERFORMANCE 2: | Temperature: 40 F - 140 F |
| PERFORMANCE 3: | Flow Rate: 0.50 GPM @ 60 psi |
| PERFORMANCE 4: | Water Consumption: @10 sec=.08 gal |
