T&S BRASS EC-3130 CHECKPOINT ABOVE-DECK ELEC FAUCET SINGLE HOLE
$544.22/EACH
| Part # | EC-3130 |
|---|
T&S Brass

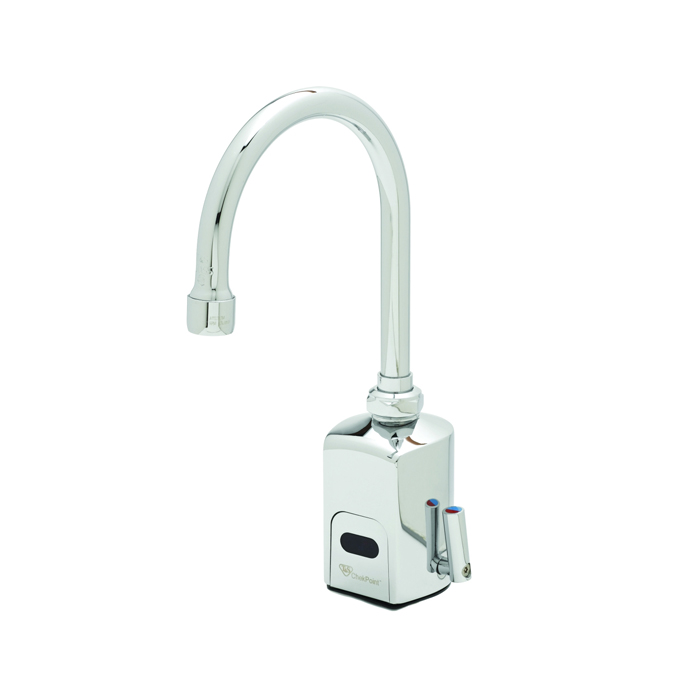

EC-3130 Checkpoint Above-Deck Electronic Faucet, Single Hole Deck Mount, Swivel Gooseneck, 2.2 GPM Aerator
EC-3130 Checkpoint Above-Deck Electronic Faucet, Single Hole Deck Mount, Swivel Gooseneck, 2.2 GPM Aerator
Related Items
| Part #: | EC-3130 |
|---|---|
| Part Description: | ChekPoint Above-Deck Electronic Faucet, Single Hole Deck Mount, Swivel GN, 2.2 GPM Aerator |
| UPC: | 671262778251 |
| Weight: | 6.3 |
| Unit of Measure: | EA |
| Box Dims: | 16x10.5x4 |
| Harmonizing No: | 8481.80.9020 |
| Country of Origin: | TAIWAN |
| Low Lead Content: | Yes |
| Mount Type (Wall or Deck): | Deck |
| Body Type: | Centerset |
| Nozzle: | Gooseneck |
| Inlets: | 3/8 Compression x 1/2 NPSM |
| Engineering Spec: | Single hole deck mount electronic sensor faucet with polished chrome plated brass body and 5 3/8swivel/rigid gooseneck, 2.2 GPM vandal resistant aerator, above deck electronic AC/DC control module with internal flow control setting switches, above deck temperature mixing handle, anti-rotation pin, 18 flexible stainless steel supply hoses and check valve adapters with 3/8 compression connections. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372 and UL 1951. Meets ADA ANSI/ICC A117.1 requirements. |
| Batteries Included: | Y |
| Number of Batteries: | 1 |
| Battery Type: | Lithium Ion |
| Brand/Trade Name: | ChekPoint |
| Assembled Dimensions - H (In): | 11.0625 |
| Assembled Dimensions - W (In): | 2.5 |
| Assembled Dimensions - D (In): | 5.438 |
| Primary Product Color: | Silver |
| Product Finish: | Chrome Plated |
| Warranty: | Three Year (Limited) |
| FEATURE1: | Single hole deck mount faucet with polished chrome plated brass body |
| FEATURE2: | 5 3/8swivel/rigid gooseneck |
| FEATURE3: | 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06) |
| FEATURE4: | Above deck electronic control module w/ internal flow control switches for adjusting auto time out & shut off delay settings |
| FEATURE5: | Optional auto flush feature flows water for 30 seconds after every 12 inactive hours |
| FEATURE6: | Plug in AC transformer or 6 VDC lithium battery (DC) power options |
| FEATURE7: | Above deck temperature mixing handle |
| FEATURE8: | Optional body plug replaces handle when temperature is preset |
| FEATURE9: | Anti-rotation pin |
| FEATURE10: | 18 flexible stainless steel supply hoses with filter washers |
| FEATURE11: | Check valve adapters with 3/8 compression connections |
| FEATURE12: | Low battery LED indicator light |
| FEATURE13: | Material: Polished chrome plated brass body and tubular spout |
| PERFORMANCE 1: | Pressure: 20 - 125 psi |
| PERFORMANCE 2: | Temperature: 40 F - 140 F |
| PERFORMANCE 3: | Flow Rate: 2.20 GPM @ 60 psi |
| PERFORMANCE 4: | Water Consumption: @ 10 sec = .37 gal |
