Part #C1102-XR-30-3
C1102-XR-30-3 MIFAB
C1102-XR-30-3 Mifab 2" PVC socket connection body 5" Heavy duty stainless steel top assembly

MIFAB- C1100-XR Series

FLOOR CLEANOUT WITH HEAVY DUTY ROUND ADJUSTABLE COVEER AND PLUG
Mifab       C1102-XR-30-3

Specification:

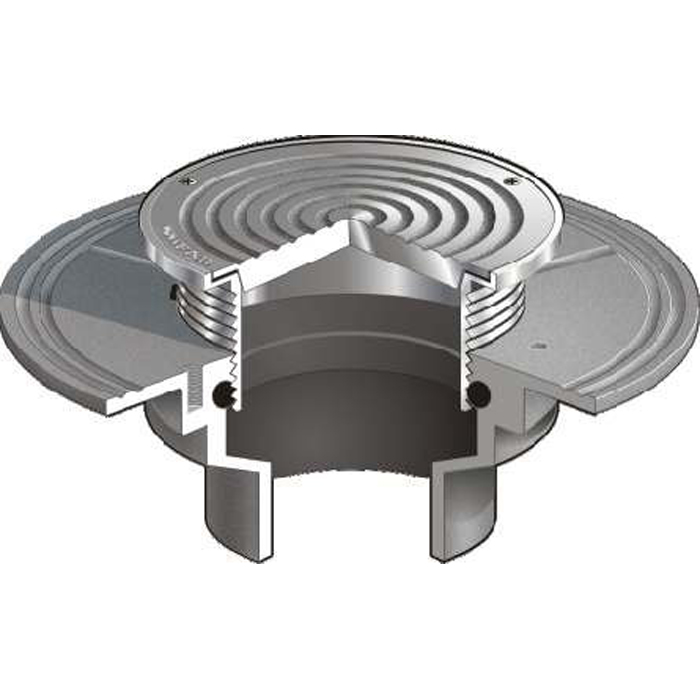

MIFAB C1100-XR Series adjustable floor cleanout with lacquered cast iron body and anchor flange, secondary �O� ring Test Seal, 4� diameter cleanout opening and round heavy duty square scoriated combined cover and plug top assembly with stainless steel vandal proof allen key screws and primary gasket seal. (For membrane floors, add Suffix -C for the membrane clamp.)

Function:
Used in unfinished floors with heavy load traffic such as warehouses and manufacturing facilities to provide emergency access to the plumbing lines for removal of blockages. Replacement of the surface level cover/plug with the neoprene gasket glued to the underside provides visual evidence that the cleanout has been properly resealed to prevent harmful sewer gases from entering the building.

SUFFIX OPTIONAL VARIATIONS
-1 Nickel bronze top assembly
-3 Heavy duty stainless steel top assembly
-4 Extra heavy duty ductile iron top assembly for unfinished areas
-6 Security screws (TR25 Torx & pin)
-11 Acid resistant epoxy coated body
-13 Galvanized body
-15 Extension
-28 Stainless steel body (Type 304)
-30 PVC socket connection body
-31 ABS socket connection body
-34 Secondary closure plug
-90 Threaded side outlet (2�,3�,4�) (cast iron only)
-90NH No hub side outlet (2�, 3�, 4�) (cast iron only)
-95 Special marking etched into top (SAN for sanitary or GW for Grease Waste)
-ARRA ARRA (Stimulus Act) compliant product
-BA Buy American Act compliant product
-C Membrane clamp
(Standard) No hub outlet
P Push on outlet
-PA Pennsylvania Steel Act compliant product
T Threaded outlet (2�,3�,4�)
X Inside caulk outlet
-XS Heavy duty square top assembly (-1, -3 only)
-Z Extended wide elastomeric flange
