MIFAB F1596-90-FL-PB 24”x24” HD PARKING AREA DRAIN / SIDE OUTLET

MIFAB F1596-90-FL-PB 24”x24” HD PARKING AREA DRAIN / SIDE OUTLET
MIFAB F1596-90-FL-PB 24”x24” HD PARKING AREA DRAIN / SIDE OUTLET
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #F1596-90-FL-PB

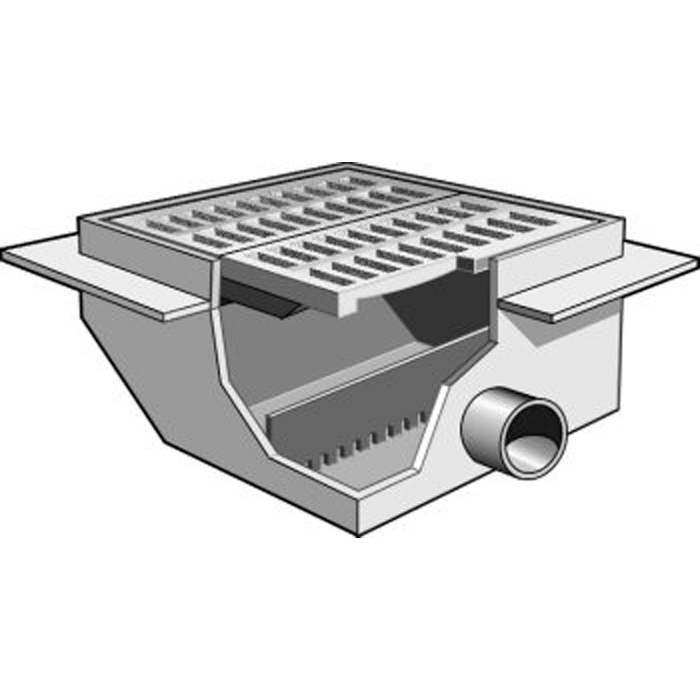

MIFAB Series F1590-90 24” x 24” HEAVY DUTY PARKING AREA DRAIN WITH SIDE OUTLET

Mifab      F1596-90-FL-PB

Specification:
MIFAB Series F1590-90 powder epoxy coated parking area drain with side outlet, anchor flange, and extra heavy duty 24” x 24” (610 x 610) two section ductile iron grates with a free area of 200 square inches (129,032²). Grates to have maximum 13/16” (21) openings.

Function:
Used in industrial factories, mechanical rooms, parking garages and other membrane finished areas. 24” x 24” tractor grate is used with all types of poured finished floors. The anchor flange provides maximum support for drain.

SUFFIX OPTIONAL VARIATIONS
-3 Stainless steel strainer (standard)
-4 Ductile iron strainer
-6 Security screws (T-20 Torx & pin)
-8 Backwater valve (2", 3", 4")
-12 Galvanized top assembly
-13 Galvanized body
-28 Stainless steel body (Type 304)
-38 Solids retaining baffle
-ARRA ARRA (Stimulus Act) compliant product
-BA Buy American Act compliant product
-C Membrane clamp-PA Pennsylvania Steel Act compliant product
(Specify) Special outlet size
