MIFAB F1103-HG5-3-7 FLOOR DRAIN /ROUND HINGE STRAINER /NON-FLOOR

MIFAB F1103-HG5-3-7 FLOOR DRAIN /ROUND HINGE STRAINER /NON-FLOOR
MIFAB F1103-HG5-3-7 FLOOR DRAIN /ROUND HINGE STRAINER /NON-FLOOR
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #F1103-HG5-3-7

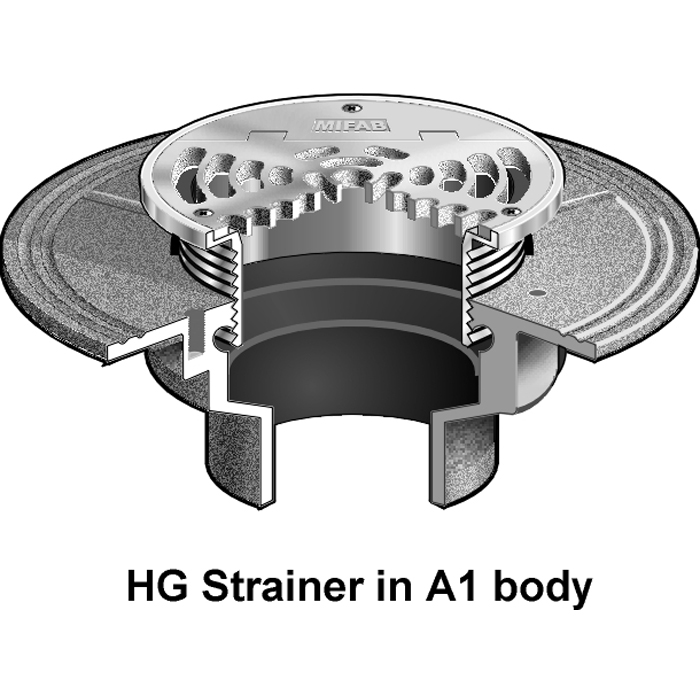

MIFAB Series F1100-HG
FLOOR DRAIN WITH ROUND HINGED STRAINER FOR NON MEMBRANE FLOOR AREAS
Mifab      F1103-HG5-3-7

Specification:
MIFAB Series F1100-( * )HG-3 (* specify strainer diameter) lacquered cast iron floor drain with anchor flange, weepholes, and hinged heavy duty, polished stainless steel strainer with vandal resistant stainless steel allen key screws. (For membrane floors, add -C to Series number).

Function:
Used in showers, kitchens, restrooms and other non-membrane finished areas. Hinged grate ensures that grate is not lost during maintenance. Round adjustable stainless steel hinged strainer is used for all types of poured finished floors. Strainer will not dish or corrode and is foot friendly.

SPECIFICATIONS
Pipe Size 3 Inch
Outlet No hub outlet (Standard)
Suffix Options 5   Top assembly (5��)
-3   Stainless steel strainer (Standard)
-7   1/2" trap seal primer connection

**Additional Freight Required on all Drain Shipments**
