MIFAB F1104X-C-N7-4-6 FLOOR DRAIN / TRACTOR GRATE / FLOOR AREAS

MIFAB F1104X-C-N7-4-6 FLOOR DRAIN / TRACTOR GRATE / FLOOR AREAS
MIFAB F1104X-C-N7-4-6 FLOOR DRAIN / TRACTOR GRATE / FLOOR AREAS
Quantity Price
1 to 9 Call for Price
10 and up Call for Price
Part #F1104X-C-N7-4-6
MIFAB Series F1100-C-N7 / F1100-C-N9
FLOOR DRAIN WITH 7" OR 9" TRACTOR GRATE FOR MEMBRANE FLOOR AREAS
Mifab      F1104X-C-N7-4-6

Specification:

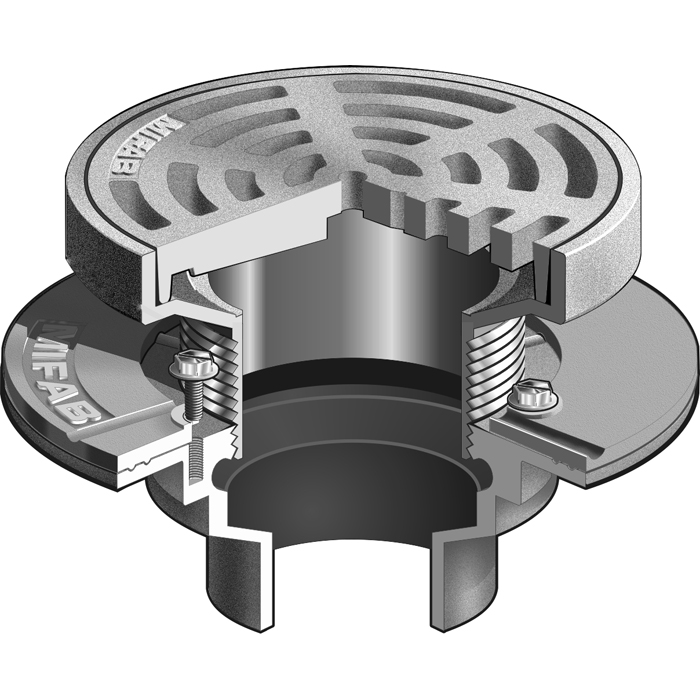

MIFAB Series F1100-C-N lacquered cast iron floor drain with anchor flange, cast iron clamp ring with primary and secondary weepholes for waterproofing membrane, and 7� (178) or 9� (235) (specify N7 or N9) (specify material finish) tractor grate. (For non-membrane floors, use MIFAB F1100-N Series.)

Function:
Used in restaurants, hospitals, industrial laboratories, and other membrane finished areas where heavy wheeled loads are expected and loose set, non tilt tractor grate is needed. Membrane clamp is provided to secure the waterproofing membrane.

SPECIFICATIONS
Pipe Size 4 Inch
Outlet X   Inside caulk outlet
Suffix Options -C   Membrane clamp
7   Top assembly (7��)
-4   Ductile iron strainer assembly
-6   Security screws (T-20 Torx & pin)

**Additional Freight Required on all Drain Shipments**
